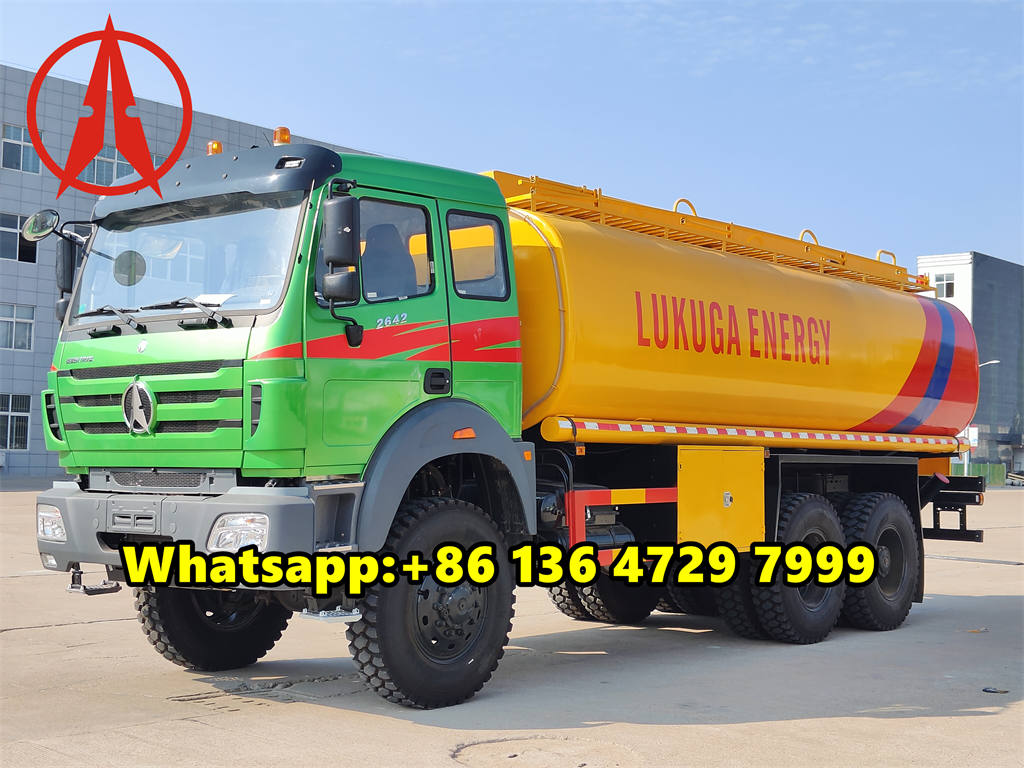

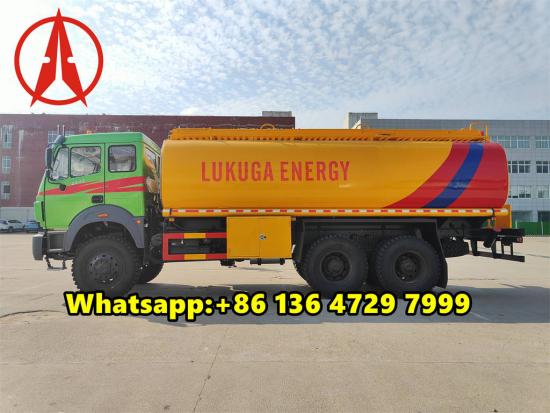

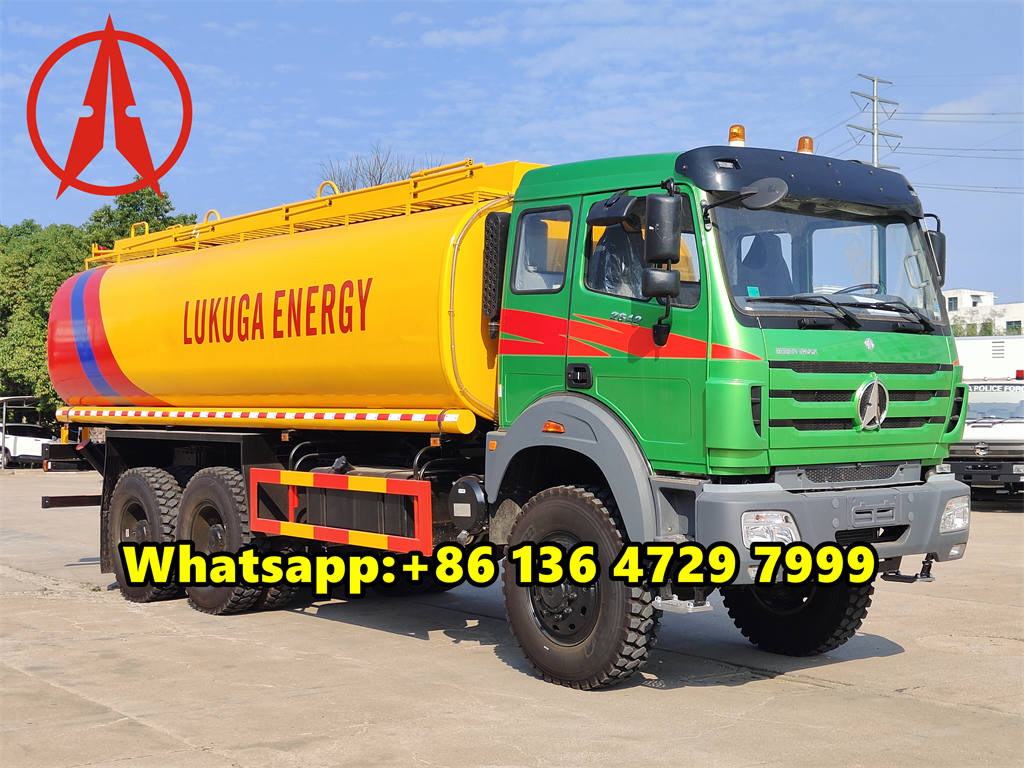

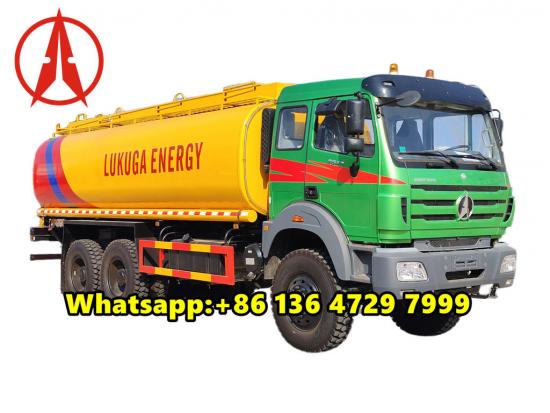

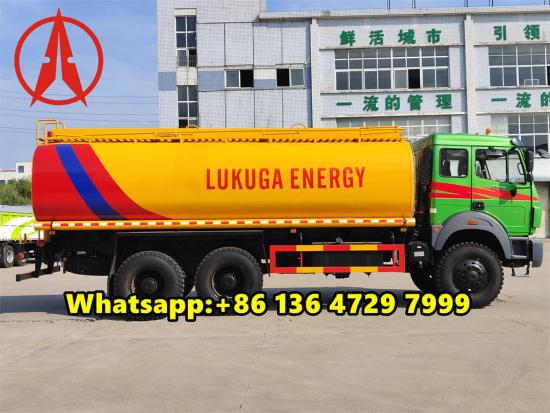

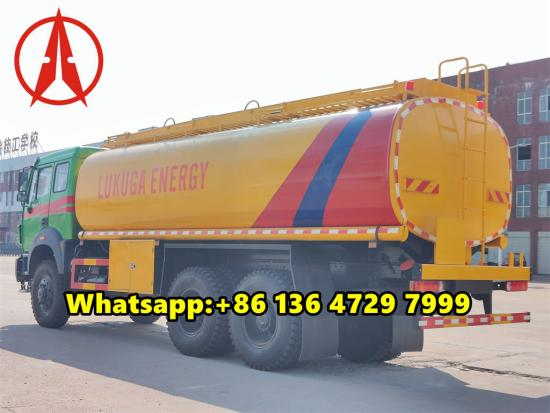

The Beiben 6×6 all-wheel drive fuel tanker is specifically designed for long-distance transportation and complex road conditions. With a chassis brand of Beiben, it features a front and rear axle configuration of 7T/13T*2 and an overall dimension of 9660×2500×3850mm. It adopts a 6×6 drive mode and is equipped with a FAST 12JS200T transmission and tires with a specification of 120.00R20. The vehicle is powered by a Weichai WP12.420E32 engine with a displacement of 12 liters and a maximum output power of 420 horsepower. The fuel tank has a total capacity of 20,000 liters and is divided into three compartments, meeting various transportation needs.
Production time:
35 daysPayment terms:
TTWorking Capcity:
20000 litersEngine power:
420 HPDrive system:
6×6 all wheel driveProduct Description

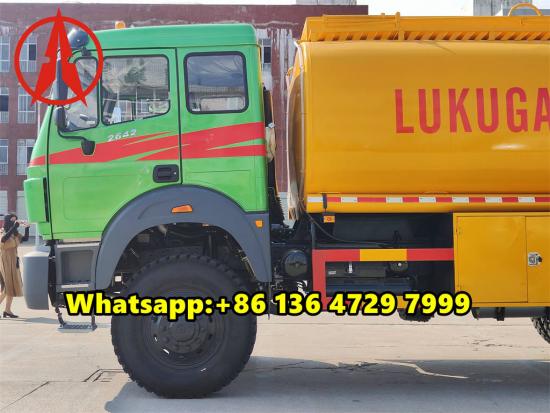

Beiben 6×6 all-wheel drive fuel tanker is a heavy-duty oil transportation vehicle specifically designed for long-distance transportation and complex road conditions. Its powerful performance and excellent adaptability make it an indispensable transportation tool in industries such as petroleum and chemical engineering. The vehicle adopts a 6×6 drive mode, meaning all six wheels have driving capability, which provides outstanding off-road performance and climbing ability.
The Beiben 6×6 fuel tanker truck is equipped with a Weichai WP12.420E32 engine, with a displacement of 12 liters and a maximum output power of 420 horsepower. This engine features a 6-cylinder in-line, four-stroke, water-cooled, turbocharged intercooling, and direct injection technology, resulting in high fuel efficiency and emissions that meet Euro 3 standards. The vehicle is also equipped with a FAST 12JS200T transmission, which has 12 forward gears and 2 reverse gears, ensuring smooth shifting and convenient operation.

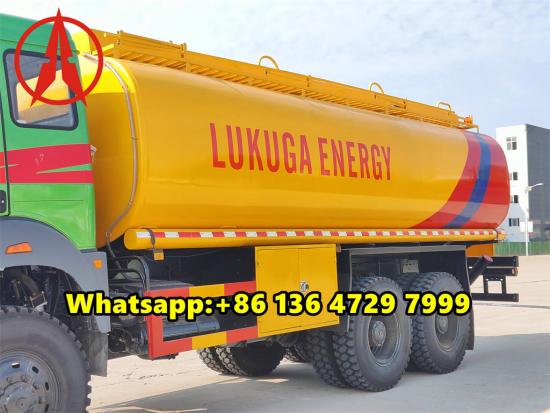

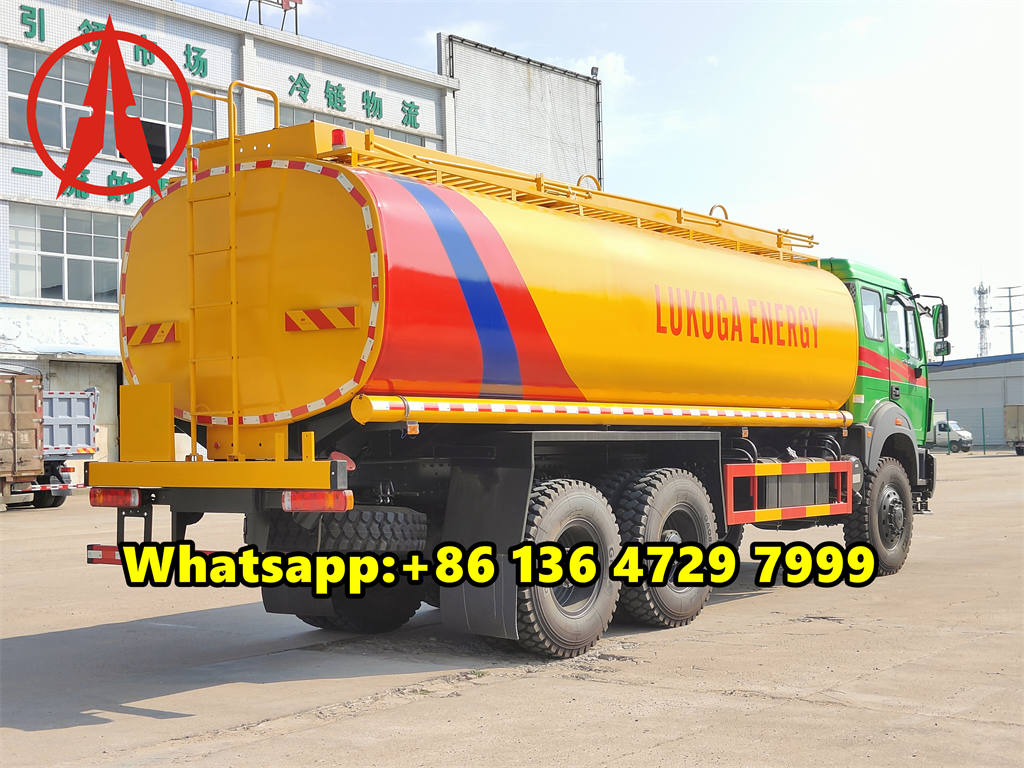

The fuel tank is a core component of the vehicle, with a total volume of 20,000 liters and divided into three compartments to meet different transportation needs. The fuel tank is made of Q235B steel, with a thickness of 5mm at the ends and 4mm for the body, ensuring its strength and durability. Additionally, the color and markings of the fuel tank can be customized according to customer requirements.

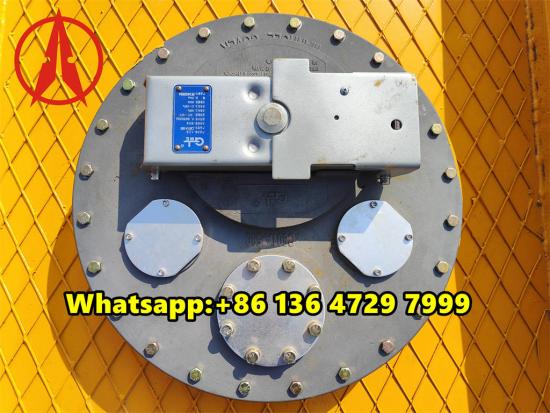

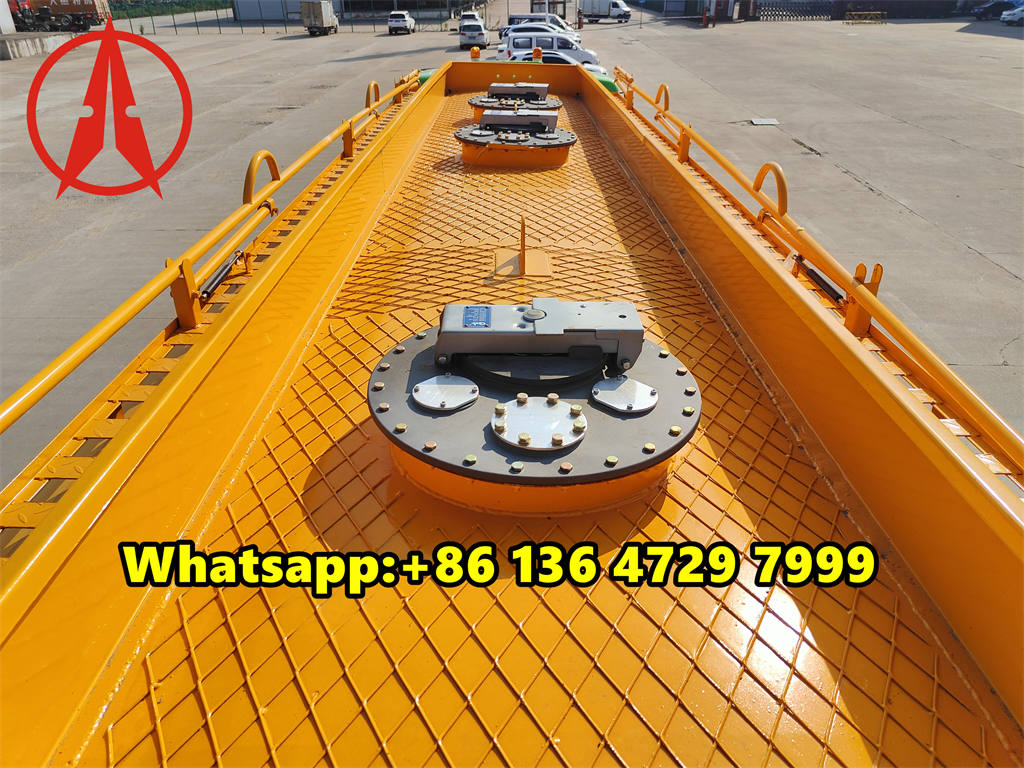

In terms of accessories, the Beiben 6×6 off-road fuel truck is equipped with 3 DN500 manholes, 3 DN50 breather valves, and 3 bottom valves, facilitating fuel filling and drainage. The vehicle also features an 80YHCB-60 oil pump with a flow rate of 60 cubic meters per hour, ensuring efficient fuel transfer. Furthermore, it is equipped with 3 ball valve-type discharge valves, 1 flowmeter with a 15-meter refueling gun, and 1 anti-static rail for safety.
To ensure driving safety, the Beiben 6×6 oil tanker truck is also equipped with an emergency cutoff device and a vapor recovery system, with an overfill sensor as a standard configuration. Additionally, the vehicle is equipped with a toolbox and a fire extinguisher to respond to emergencies.
Product Specifications
|
Truck Chassis |
||||
|
Chassis Brand |
Beiben |

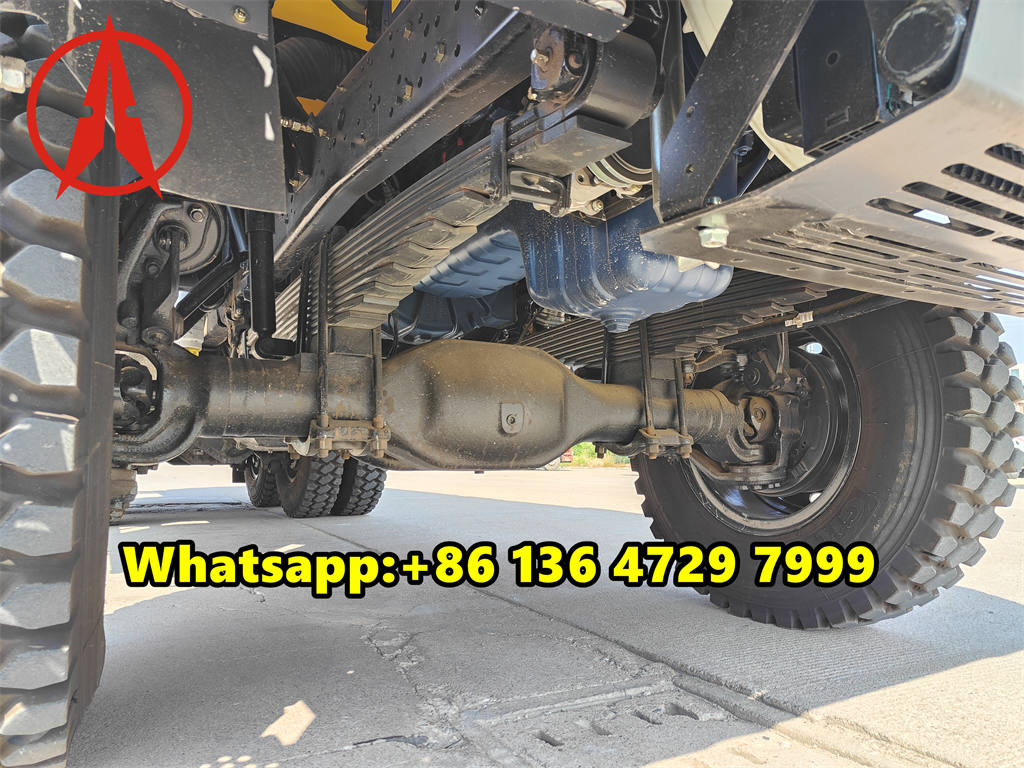

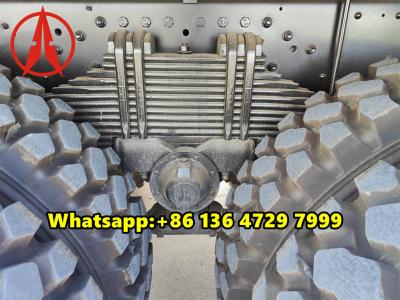

F/R Axle |
7T/ 13T*2 |
|
|
Overall Dimensions |
9660×2500×3850 mm |
Drive Type |
6×6, LHD |
|
|
Wheelbase |
4450+1450mm |
Gearbox |
FAST 12JS200T, 12F+2R |
|
|

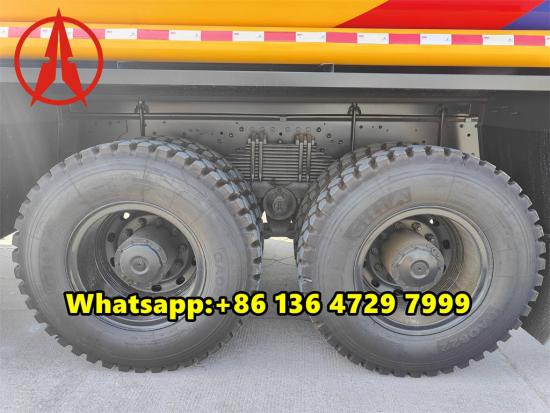

Tire |
12.00R24, 10+1pcs |
Brake |
Air brake type |
|
|
Cabin |

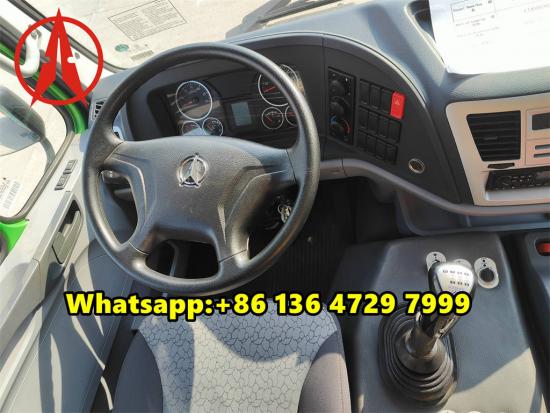

NG80, long cabin, with one sleeper, with A/C, hydraulic driver's seat, manual reversal, etc |
|||
|
Engine |
Model |
Weichai WP12.420E32 |
||
|
Horsepower |
420HP |
|||
|
Displacement |
12 L |
|||
|
Emission |
Diesel, Euro 3 |
|||
|
Type |
6 cylinders in-line, four strokes, water-cooled, turbo-charged intercooling, direct injection |
|||
|
Fuel Tanker |
||||
|
Tank |
Volume |
20000L, 3 compartments |
||
|
Material & Thick |
steel Q235B; end 5mm, body 4mm |
|||
|
Color & Logo |
customized |
|||
|
Fittings |
Manhole |
3 units DN500 |
||
|
Breather Valve |
3 units, DN50 |
|||
|
Bottom Valve |
3 units |
|||
|
Oil Pump |
80YHCB-60, with flow rate 60m3/h |
|||
|
Discharge Valve |
3 units, ball valve |
|||
|
Flowmeter |
1 unit, with 15M rotary filling gun |
|||
|
Anti-static rail |
1 piece |
|||
|
Emergency Cutoff Device |
1 unit |
|||
|
Vapor Recovery System |
Factory standard |
|||
|
Overfill sensor |
Factory standard |
|||
|
Tool Box |
1pcs |
|||
|
Fire extinguisher |
1 pcs |
|||
Product Details
