Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.
Order(MOQ):

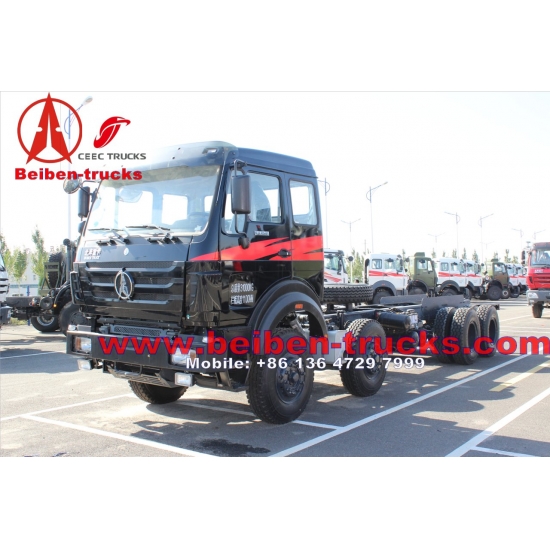

1africa beiben 340 Hp engine 8 wheel drive truck chassis
The series products of our Beiben military all wheel drive trucks are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.
Beiben truck features and advantages:
1: Driving room: the steel structure, high safety,lower wind resistance coefficient
2:Power system dynamic matching technology of mercedes-benz: less power loss and more efficient
3: The suspension system: Mercedes suspension, high intensity
4: Benz axle: double deceleration bridge, high efficiency, carrying large
5: Transmission system: high efficiency, bigger torque, climbing superior performance
6: Steering system:high safe and reliable, and flexible
7:Braking system, high security, brake with high efficiency
8: Electric system: stronger load ability, high reliability and easy maintenance
Beiben truck manufactured under
the license of Mercedes Benz technology, which has excellent performance with
reasonable price.
Technique Parameters |
||
| Brand | BEIBEN TRUCK | |
| Vehicle model | 3134AP | |
| Cabin | Full steel skeleton structure, covered with double layer steel plate | |
| Anticorrosion treatment processes complex, anti-corrosion, durability of sustainable vehicles | ||
| Long/Day cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure | ||
| Persons in cab: 3 | ||
| Driving | 8x8 | |
| Wheel base (mm) | 1500+4150+1450/1500+5050+1450 | |
| Weight data | Curb Weight(kg) :13550 | |
| Engine | Model | Brand WeiChai WP10.336 / Diesel, Straight in line，water-cooled，turbocharged, intercooled, 6 cylinders, |
| Power | 340HP | |
| Emission | EUR III | |
| Rated power(kw/rpm) | 247Kw/2200rpm | |
| Transmission | FAST GEAR Model:9JS150A 9-forward &1-reverse gears | |
| Option: 12JS160T | ||
| Clutch | single disc, dry type, diaphragm spring, φ430 | |
| Frame | BeiBen Unique frame, Mercedes-Benz technology, Strengthened frame | |
| Fish belly, various width, various sections, side beam structure | ||
| Axle | Front: | Mercedes Benz Technology, 7.5 ton, non-driving steering axle |
| Middle/Rear: | Mercedes Benz Technology, 13 Ton, ductile casting casing, with hub redactor, double reduction driving axle | |
| Suspension | Non-free standing stabilization spring, hydraulic shock absorber， stabilization suspension， | |
| Steering | ZJ120D/TAS85/ ZF8098 (Original ZF technology) | |
| Wheels and tyre size | 12+1/12.00-R20 | |
| Fuel tank (L) | 400L | |
| Colour | Metal white, multi-colored options | |
north benz brand china beiben 8 wheel drive truck are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
Beiben 8x8 all wheel driving cargo truck, the Beiben 4142 model truck equipped with NG80 classical cabin, mounted with 12.00R24 tires, which have a larger diameter and higher height, and the Beiben 8x8 chassis has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Super powerful WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, turbo charge and 6 cylinder. Stronger frame can be suitable to build all kinds of special purpose trucks.
The Beiben 8×8 all-wheel-drive chassis features a tri-axle twelve-wheel design with a wheelbase of 1500+5050+1450mm. The overall dimensions are 12100X2700X3400mm, and the curb weight is 10800kg. It is equipped with a WP12.420E32 diesel engine, rated at 319Kw (420HP), mated to a 12JS200T transmission. The chassis is fitted with a dual-circuit air brake system and a full-circulating ball-type steering system, and utilizes a fish-belly high-strength frame. With its ability to adapt to various complex environments, it is a preferred choice in the field of off-road transportation, widely used in petroleum exploration, mining, military operations, and rescue missions.
Beiben 4142 off-road military truck is a powerful vehicle designed for rugged terrain and challenging environments. Equipped with a robust WP12.420 engine, this truck is capable of delivering superior performance . With its 8x8 off-road drive system, the Beiben 4142 can traverse rough and uneven terrain with ease, making it ideal for military operations, disaster relief efforts, and other specialized missions. The truck's NG80B full steel cabin provides a safe and comfortable environment for the driver and passengers,
The Beiben 8x8 offroad drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions. Brand new Beiben 3135 V3 cargo truck chassis equipped with newly designed V3 cabin with one sleeper, A/C system for convenient working, WEICHAI diesel engine with 350HP, emission can be 9.726cc, FAST brand 12JS200T model with 12 forward and 2 reverse, as for axle capacity for the China North Benz 8x8 military truck chassis, front can be 7500kg with double turning axles and rear can be 13000kg with double driving axles, diesel tanker capacity is 400L, optional aluminum alloy material or carbon steel material, ZF8098m left hand drive or right hand drive steering suitable for all Africa market, the V3 new cabin can have painting and logos 100% as customized.
Beiben 8x8 V3 Truck Chassis is equipped with WEICHAI WP10H350 engine with 350 horsepower and 9.5 liter displacement. It adopts 12JS200T gearbox with 12 forward gears and 2 reverse gears. ZF8098 hydraulic power steering system improves handling. The front axle adopts Mercedes Benz technology and has a load capacity of 6.5 tons. The rear axle has a double reduction and a load capacity of 13 tons. The vehicle size is 9500×2500×3180 mm, the wheelbase is 1500+4150+1450 mm, the total mass is 31,000 kg, the maximum speed is 100 kilometers per hour, and the fuel tank capacity is 400 liters. It is suitable for a variety of heavy-duty transportation tasks.
Mercedes-Benz Technology Military quality 9 years field experience Supply spare parts Beiben NG80 6x4 tractor north benz truck price NG80 6x4 tractor north benz truck price
310HP Beiben NG80 trailer head trucks For Sale,Beiben 6*4 tractor head: Beiben 2532S,2536S,2538S,2542S Beiben 2527S,2429S,2529S,2527S,2548S,2540S,2534S,2535S,2542S,2634,2638,2642
Beiben Tractor Truck and Head Weichai Engine Mercedes Benz Technology Best After - Sales Service 10 Yeas Experiences
