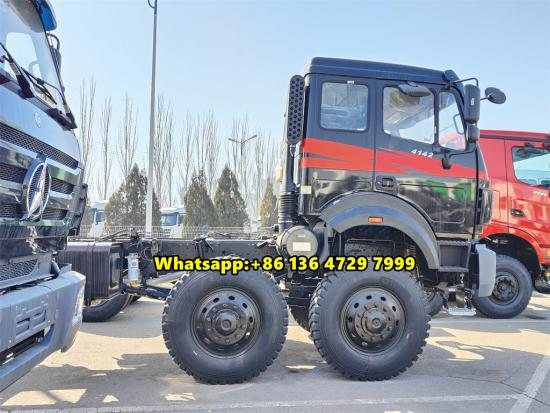

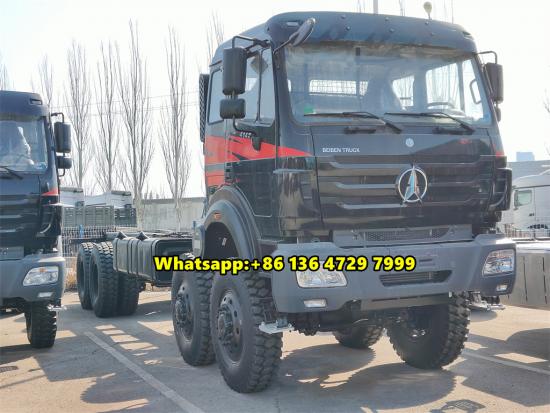

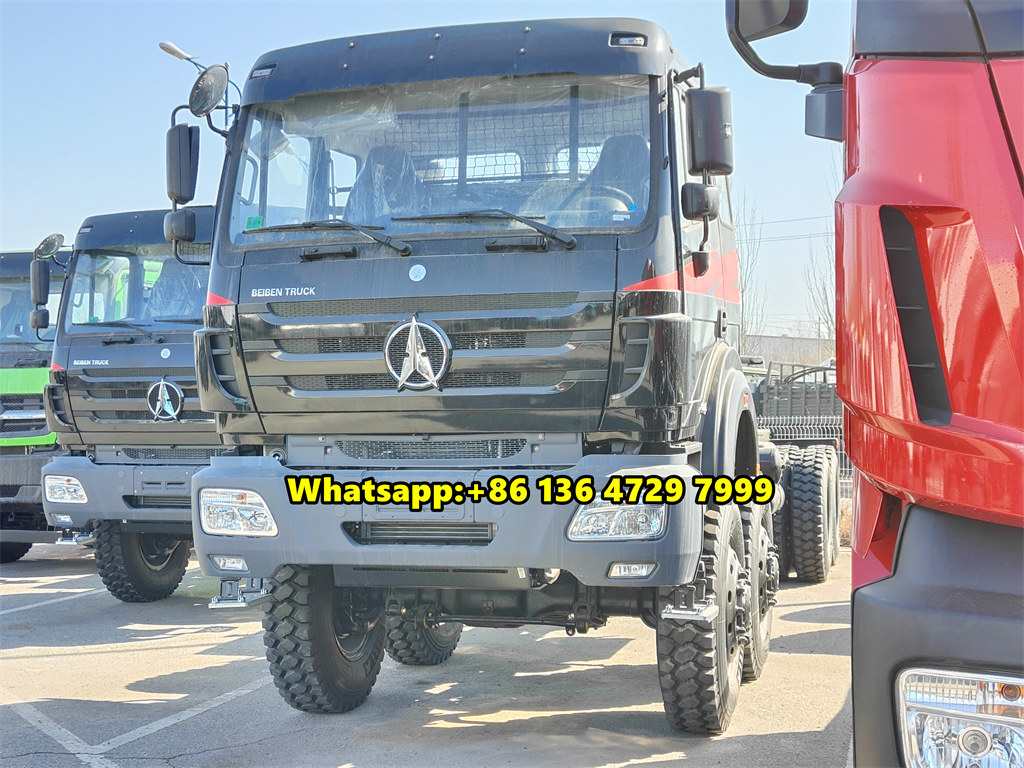

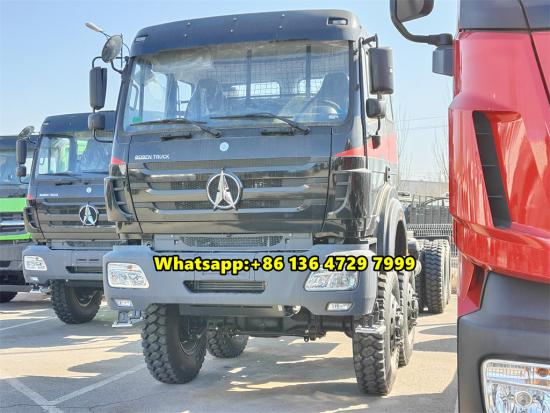

Beiben 8x8 all wheel driving cargo truck, the Beiben 4142 model truck equipped with NG80 classical cabin, mounted with 12.00R24 tires, which have a larger diameter and higher height, and the Beiben 8x8 chassis has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Super powerful WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, turbo charge and 6 cylinder. Stronger frame can be suitable to build all kinds of special purpose trucks.
Production time:
25-30daysPayment terms:
TTWorking Capcity:
30-40 tonsEngine power:
420HPDrive system:
8x8Beiben 8x8 all wheel driving cargo truck also can be called Beiben 8x8 offroad cargo truck, Beiben 4142 AWD cargo truck, Beiben 8x8 military truck. The Beiben 8x8 all wheel drive NG80 cargo truck has strong off-road capability and high passability, and can adapt to complex and harsh road conditions, such as mountains, deserts, snow, etc. Beiben 8x8 drive form means that it has four axles and 12 wheels, single at front two axles and double at rear two axles, and each wheel has power output. This design enables it to maintain good traction and stability under extreme conditions. Beiben 8x8 all-wheel drive cargo truck in DRC Congo is mainly used in some fields and regions that require high off-road performance, including but not limited to military, rescue, exploration and other mining fields. In the military field, such vehicles are often used as transportation, reconnaissance or combat platforms, and their strong off-road capabilities enable them to be quickly deployed in various complex environments. In the field of rescue, Beiben 8x8 cargo trucks can quickly reach the disaster area for personnel evacuation and material transportation. In the field of exploration, it is the right-hand man of explorers, helping them conquer various rugged terrains.
|
Required Technical Specification |
||
|
Basic parameter |
Model |
4142 / 8×8 |
|
Length×width×height(mm) |
11800×2500×3385 |
|
|
Wheel-base(mm) |
1850+4450+1450 |
|
|
Curb weight(kg) |
14400 |
|
|
Engine parameter |
Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1600/1400～1600 |
|
|
Displacement(lit) |
11.596 L |
|
|
Fuel tank capacity |
400L Iron oil tanker |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 12JS200A |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake |
|
|
Assisted brake |
Engine exhaust brake |
|
|
Chassis parameter |

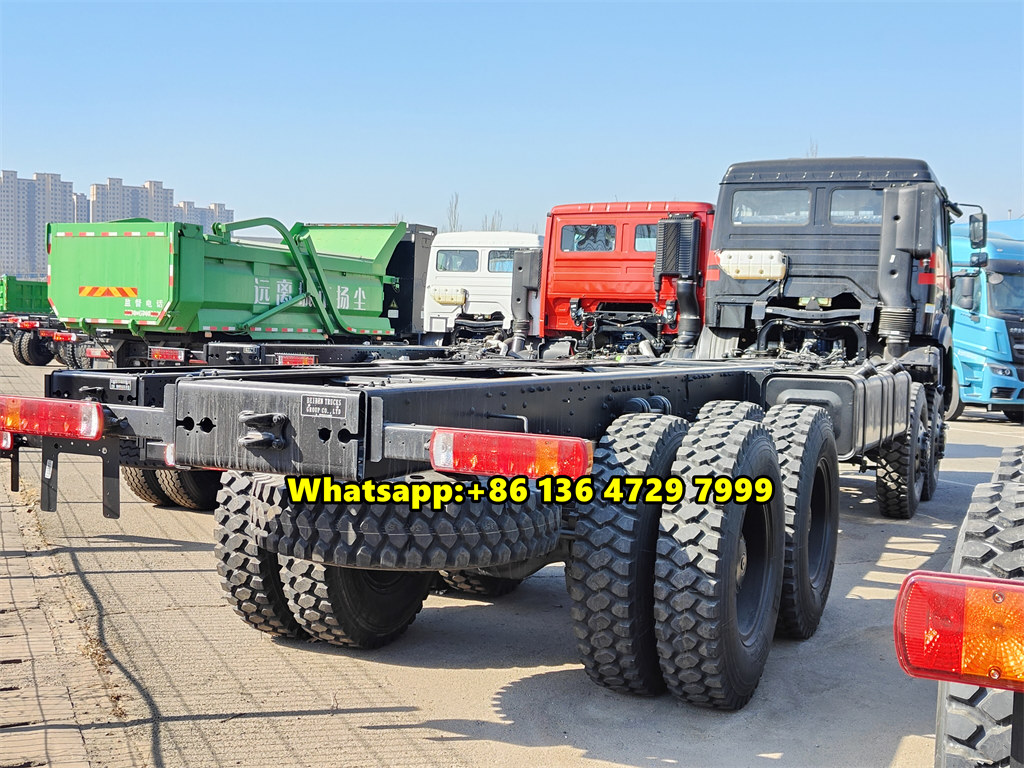

Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, no-driving steering axle, drum brake； |
|
|
Middle & Rear axle |
13 T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263； |
|
|

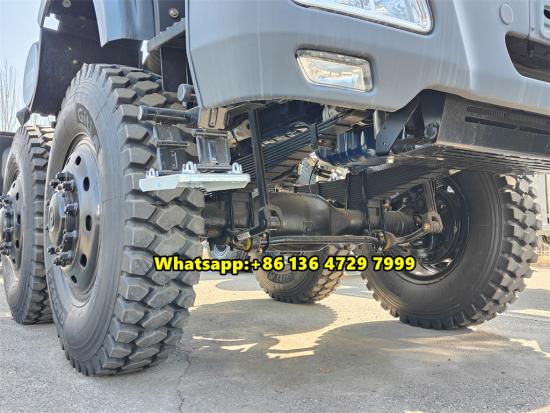

Front and rear suspension |
Front/rear: Leaf spring, 13/13 pieces； |
|
|

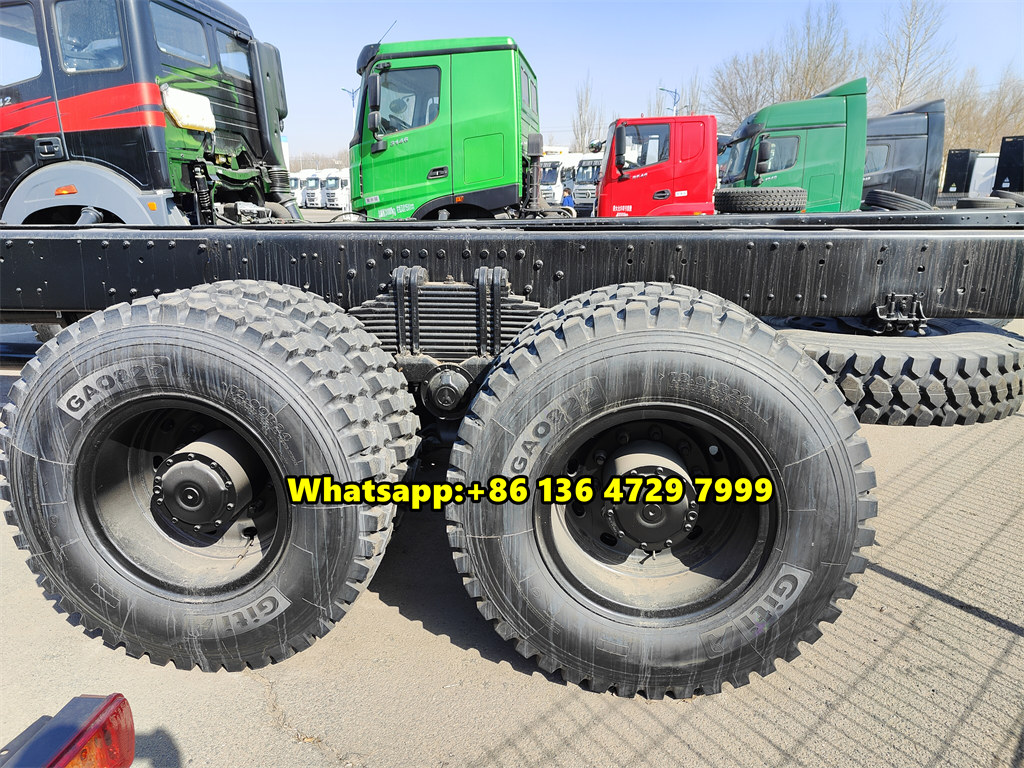

Tire |
12.00R24 |
|
|

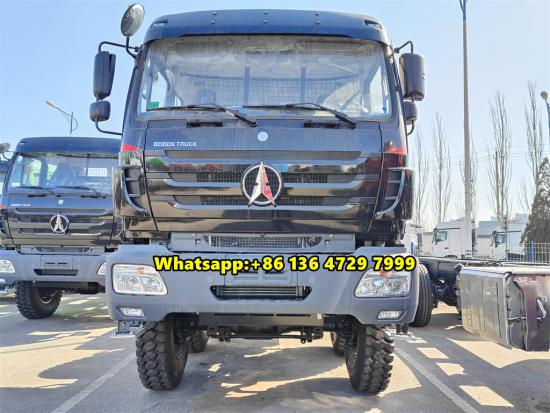

Cab |

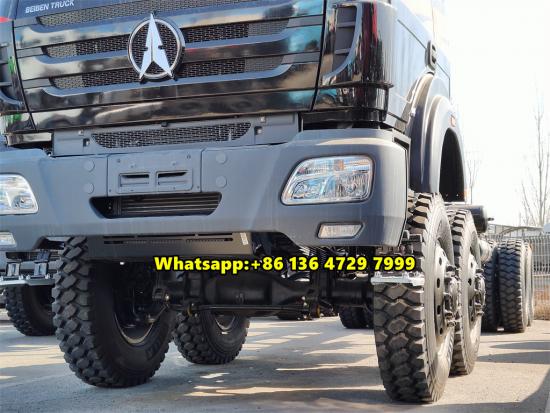

NG80B Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|

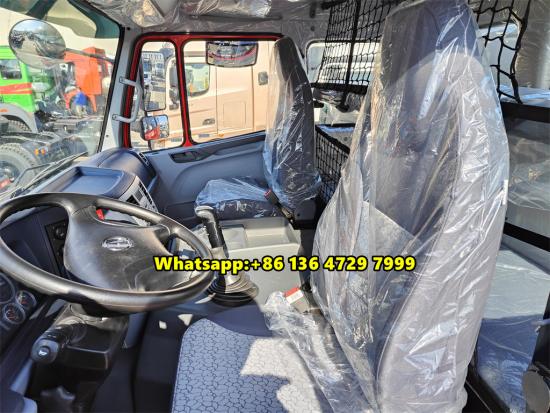

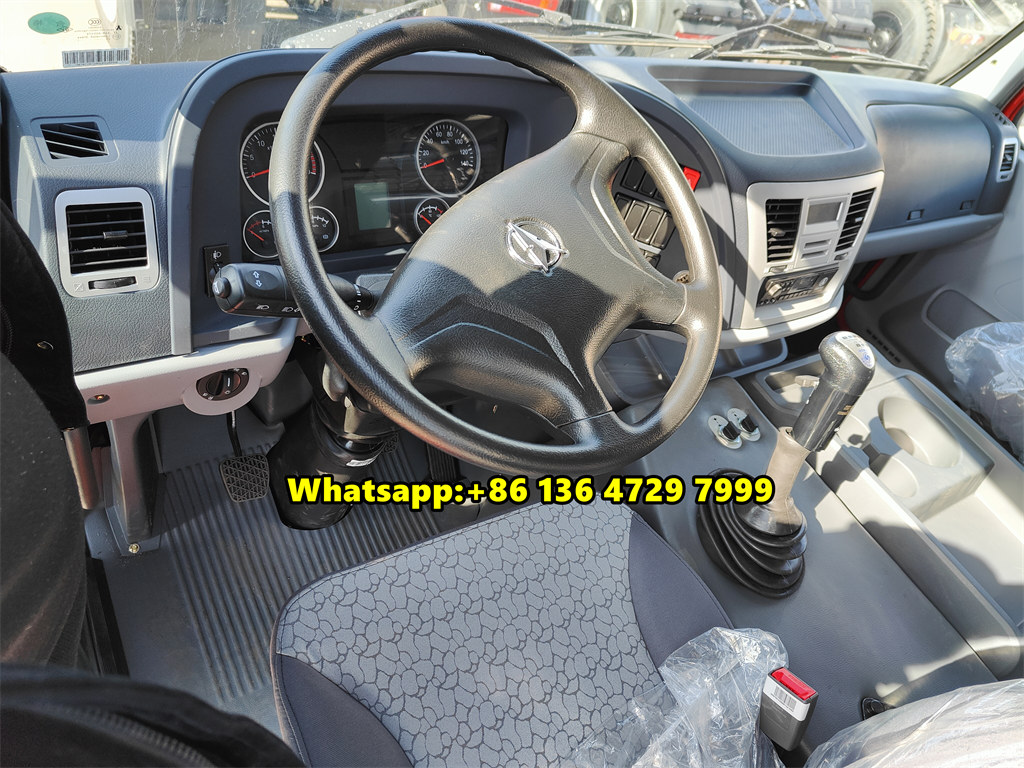

Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
Robust 8x8 Drive Type: The BEIBEN 8x8 offroad cargo truck boasts an impressive 8x8 drive type, providing exceptional traction and stability across varied terrains. This feature ensures reliable performance even in challenging environments, making it suitable for diverse construction and industrial applications.
Powerful Engine: Equipped with the WP12.420 diesel engine model, delivering a formidable 420HP engine power, this Beiben 8x8 model truck combines high performance with efficiency. The potent engine ensures ample power for lifting operations while maintaining fuel efficiency, and optimizing productivity on the job site.
In addition to its remarkable working performance, the BEIBEN 8x8 offroad cargo truck chassis prioritizes operator comfort and safety. The cabin is ergonomically designed, providing a spacious and comfortable workspace for operators to work efficiently during long shifts. Advanced safety features and intuitive controls further enhance operational reliability, ensuring peace of mind for operators even in challenging working environments. The BEIBEN 8x8 all wheel driving truck chassis stands as a testament to innovation and excellence in the realm of heavy loading equipment. Combining robust construction, powerful performance, and advanced features, it sets a new standard for efficiency and productivity in industrial operations.
north benz brand china beiben 8 wheel drive truck are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.
The Beiben 8×8 all-wheel-drive chassis features a tri-axle twelve-wheel design with a wheelbase of 1500+5050+1450mm. The overall dimensions are 12100X2700X3400mm, and the curb weight is 10800kg. It is equipped with a WP12.420E32 diesel engine, rated at 319Kw (420HP), mated to a 12JS200T transmission. The chassis is fitted with a dual-circuit air brake system and a full-circulating ball-type steering system, and utilizes a fish-belly high-strength frame. With its ability to adapt to various complex environments, it is a preferred choice in the field of off-road transportation, widely used in petroleum exploration, mining, military operations, and rescue missions.
Beiben 4142 off-road military truck is a powerful vehicle designed for rugged terrain and challenging environments. Equipped with a robust WP12.420 engine, this truck is capable of delivering superior performance . With its 8x8 off-road drive system, the Beiben 4142 can traverse rough and uneven terrain with ease, making it ideal for military operations, disaster relief efforts, and other specialized missions. The truck's NG80B full steel cabin provides a safe and comfortable environment for the driver and passengers,
The Beiben 8x8 offroad drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions. Brand new Beiben 3135 V3 cargo truck chassis equipped with newly designed V3 cabin with one sleeper, A/C system for convenient working, WEICHAI diesel engine with 350HP, emission can be 9.726cc, FAST brand 12JS200T model with 12 forward and 2 reverse, as for axle capacity for the China North Benz 8x8 military truck chassis, front can be 7500kg with double turning axles and rear can be 13000kg with double driving axles, diesel tanker capacity is 400L, optional aluminum alloy material or carbon steel material, ZF8098m left hand drive or right hand drive steering suitable for all Africa market, the V3 new cabin can have painting and logos 100% as customized.
Beiben 8x8 V3 Truck Chassis is equipped with WEICHAI WP10H350 engine with 350 horsepower and 9.5 liter displacement. It adopts 12JS200T gearbox with 12 forward gears and 2 reverse gears. ZF8098 hydraulic power steering system improves handling. The front axle adopts Mercedes Benz technology and has a load capacity of 6.5 tons. The rear axle has a double reduction and a load capacity of 13 tons. The vehicle size is 9500×2500×3180 mm, the wheelbase is 1500+4150+1450 mm, the total mass is 31,000 kg, the maximum speed is 100 kilometers per hour, and the fuel tank capacity is 400 liters. It is suitable for a variety of heavy-duty transportation tasks.
Beiben 2546 trailer tractor truck with V3 cabin, 460 hp diesel strong engine , Good performance and more convenient, China beiben latest V3 cabin , with double bed inside , easily maintenance and repair, mercedes benz 7.5 T front axle and mercedes benz 13 T double rear axle,3450+1450 mm, 12.00R20 tyre.
North Benz Beiben Dump Truck WEICHAI engine,Fast Gear box,Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck Traction type: 6X4 Driving type: LHD (RHD is optioned),middle length cab, made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner A/C
40 CBM oil tanker semitrailer type, 3 axle FUWA OR BPW type, 28 T double speed gear, 12.00R20 tyre.
