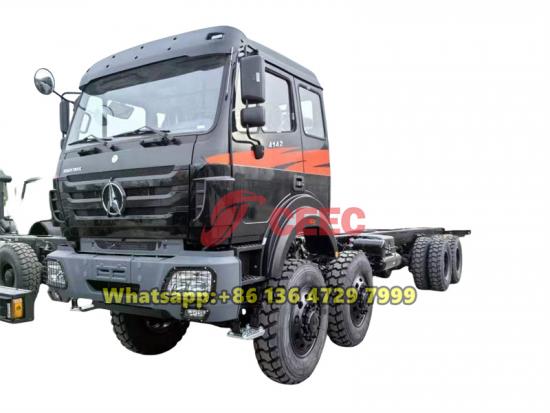

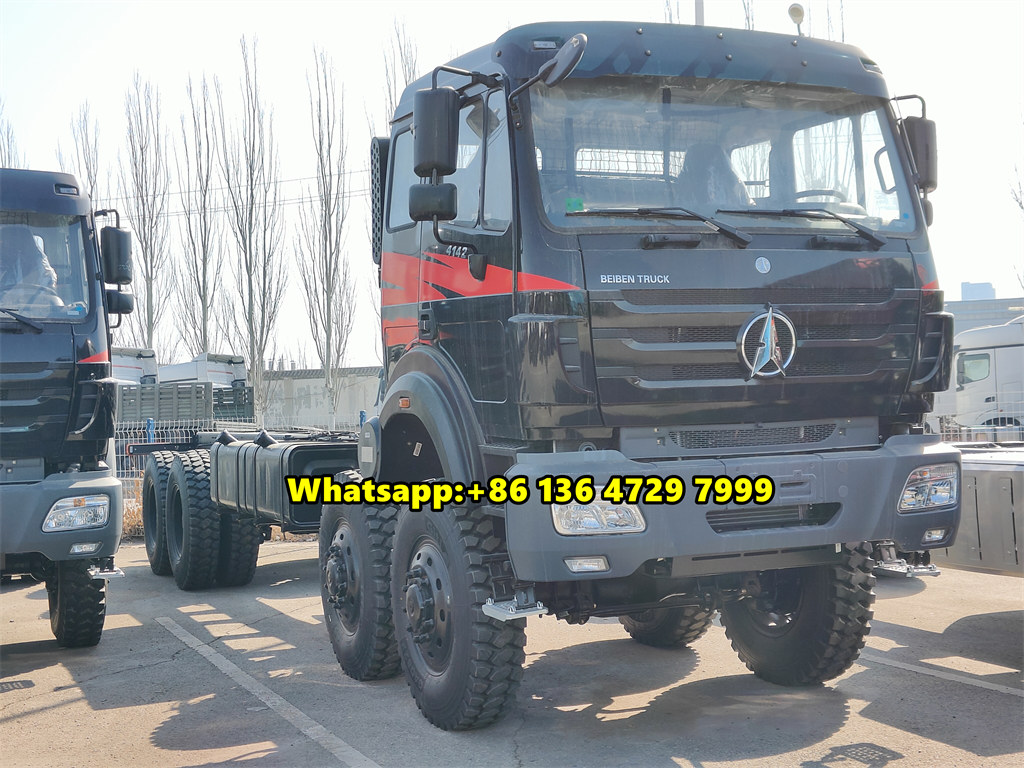

Beiben 4142 off-road military truck is a powerful vehicle designed for rugged terrain and challenging environments. Equipped with a robust WP12.420 engine, this truck is capable of delivering superior performance . With its 8x8 off-road drive system, the Beiben 4142 can traverse rough and uneven terrain with ease, making it ideal for military operations, disaster relief efforts, and other specialized missions. The truck's NG80B full steel cabin provides a safe and comfortable environment for the driver and passengers,
Production time:
25-30daysPayment terms:
T/TWorking Capcity:
30-40 tonsEngine power:
420HPDrive system:
8x8Beiben 4142 off-road military truck is a formidable vehicle equipped with a powerful WP12.420 engine, an 8x8 off-road drive system, an NG80B full steel cabin, and Benz technology front and rear axles. Beiben 8x8 off road military truck is designed for use in rugged and challenging terrains, making it ideal for military operations, off-road missions, and extreme weather conditions.
The WP12.420 engine provides the Beiben 4142 with the necessary power and torque to navigate through rough terrain and carry heavy loads over long distances. The 8x8 off-road drive system ensures excellent traction and stability on uneven surfaces, allowing the truck to maneuver through mud, sand, snow, and other challenging environments.
NG80B full steel cabin offers superior protection to the driver and passengers, providing a safe and comfortable environment even in the harshest conditions. The Benz technology front and rear axles further enhance the truck's performance, durability, and reliability, making it a trusted vehicle for military and off-road applications.
In military operations, the Beiben 4142 off-road military truck can be used for troop transport, cargo transportation, logistics support, equipment mobilization, and other essential tasks. Its robust construction, high payload capacity, and off-road capabilities make it a versatile and reliable asset for military units operating in challenging environments.
|
Required Technical Specification |
||
|
Basic parameter |
Model |
4142 / 8×8 |
|

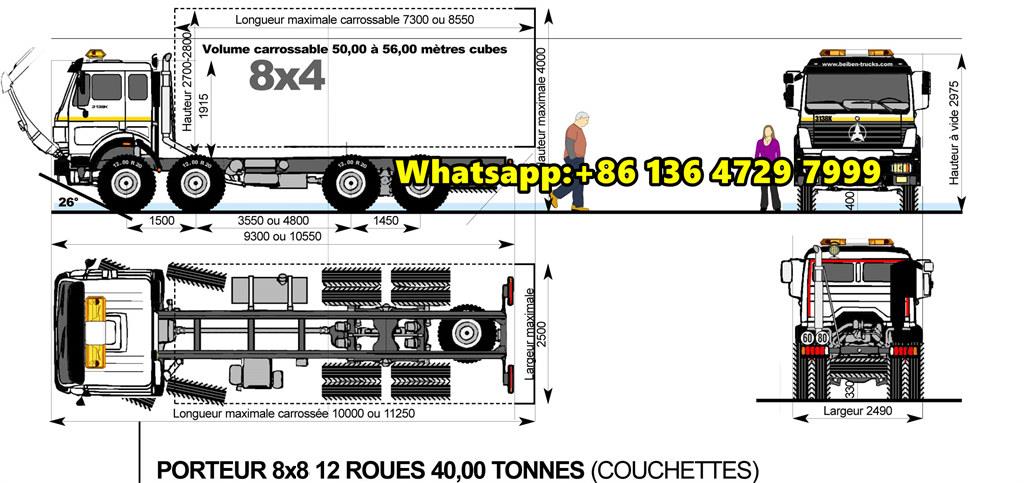

Length×width×height(mm) |
11800×2500×3385 |
|
|
Wheel-base(mm) |
1850+4450+1450 |
|
|
Curb weight(kg) |
14400 |
|
|
Engine parameter |

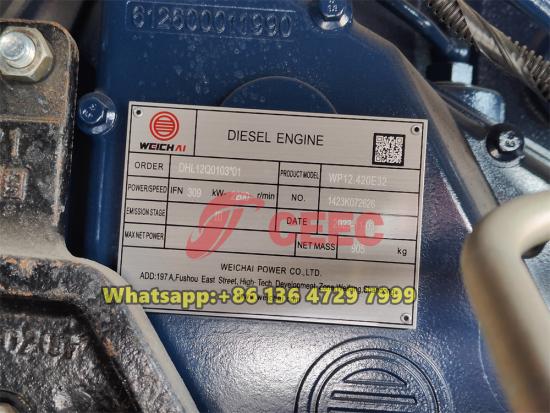

Model (six cylinder in line) |
WP12.420E32 |
|
Max. Power (HP/rpm) |
420 |
|
|
Max. Torque(Nm/rpm) |
1600/1400～1600 |
|
|
Displacement(lit) |
11.596 L |
|
|

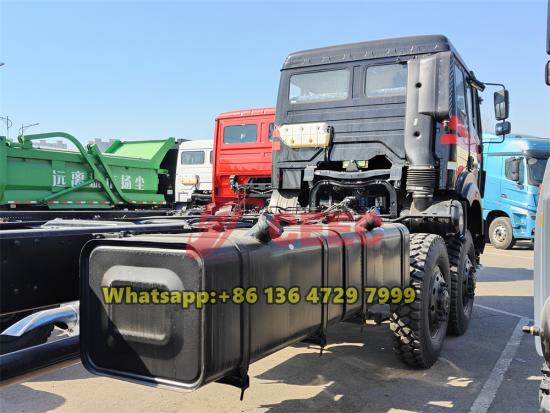

Fuel tank capacity |
400L Iron oil tanker |
|
|
Transmission system |
Clutch |
430 Single disc, dry type, friction clutch； |
|
Gearbox |
Mechanical, 12JS200A |
|
|
Steering system |
Steering gear |
8098 Circulating ball steering gear, hydraulic booster |
|
Brake system |
Service brake |
Double circulation air brake system equipped； |
|
Parking brake |
Energy storage spring brake |
|
|
Assisted brake |
Engine exhaust brake |
|
|
Chassis parameter |
Frame |
Variable width and section 317×70×8.5+7+8.5 mm； |
|
Front axle |
7.5 T, no-driving steering axle, drum brake； |
|
|

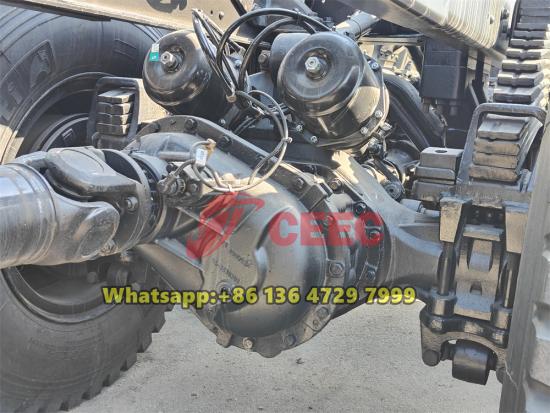

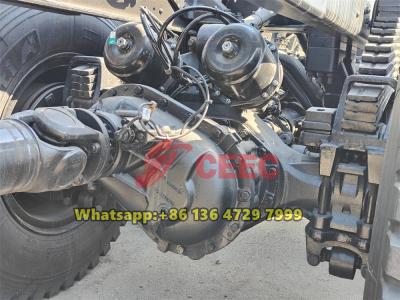

Middle & Rear axle |
13 T, Double-shoe pneumatic brake, double reduction driving axle, differential lock, speed ratio is 5.263； |
|
|

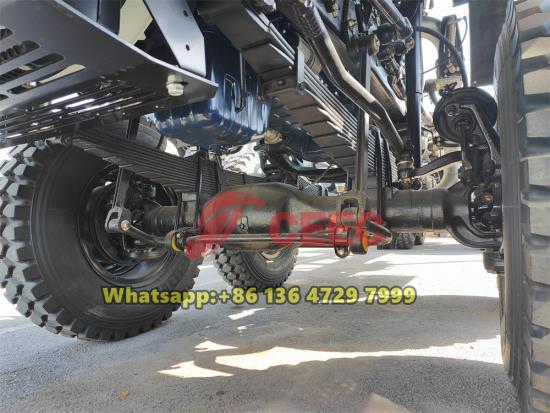

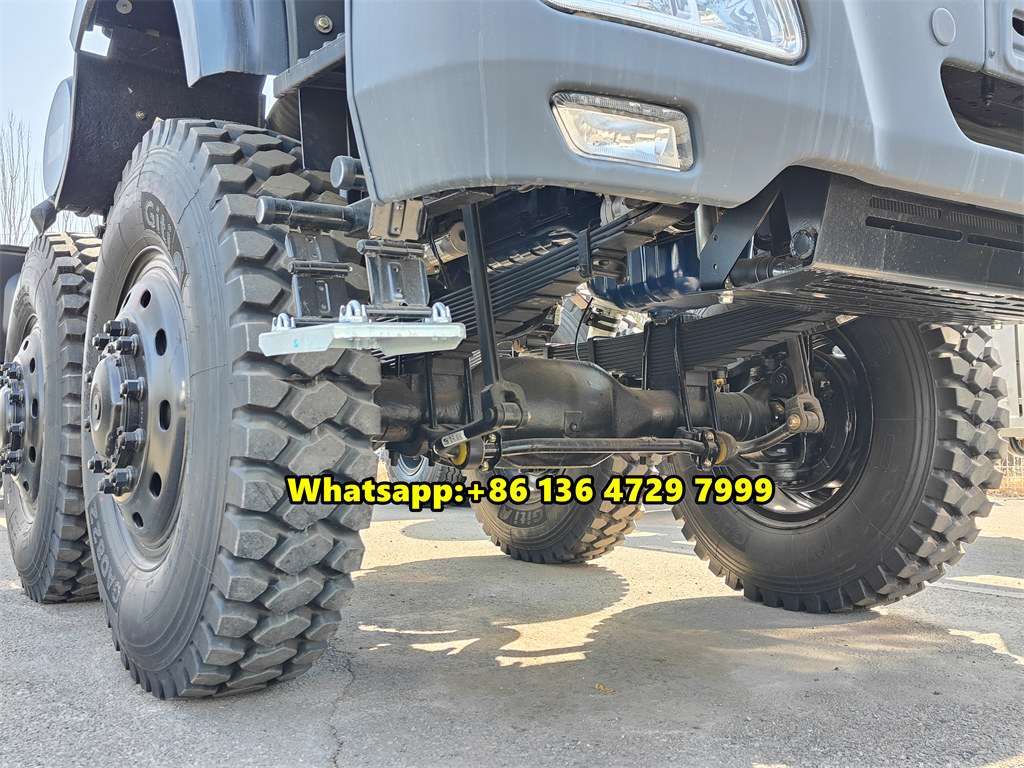

Front and rear suspension |
Front/rear: Leaf spring, 13/13 pieces； |
|
|

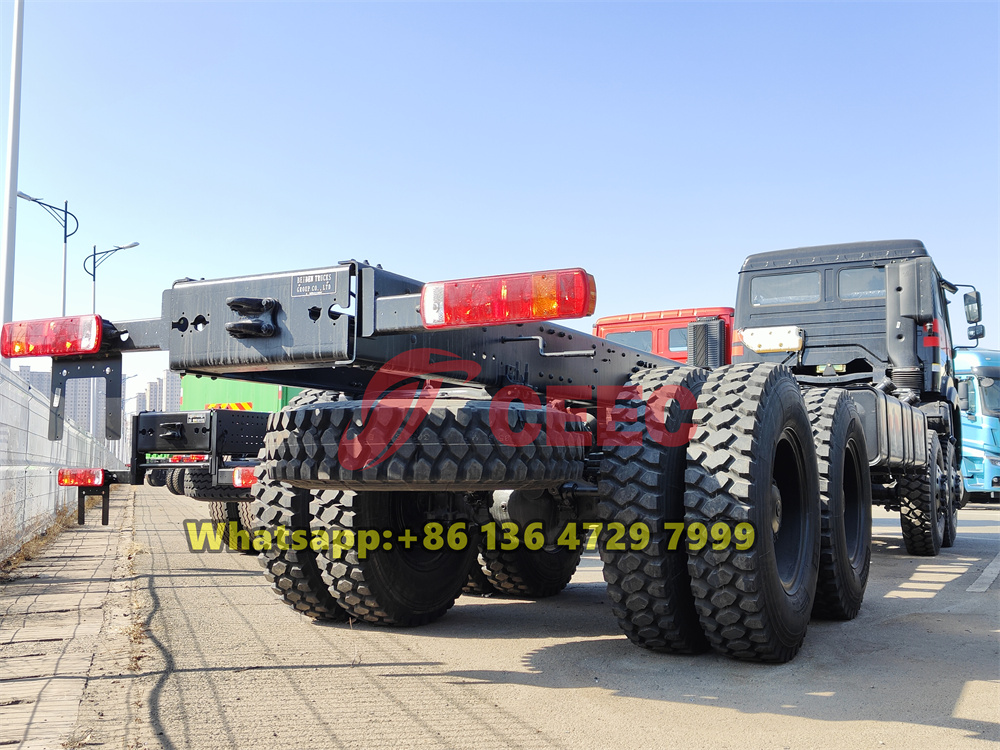

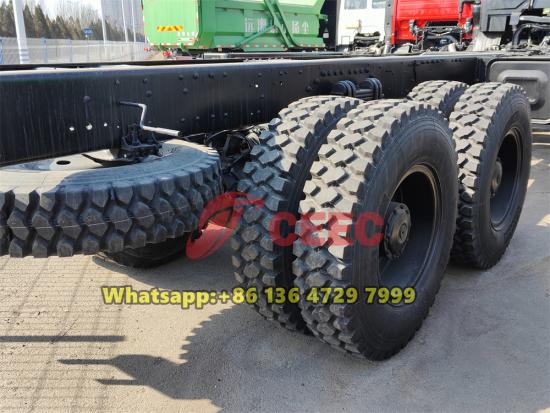

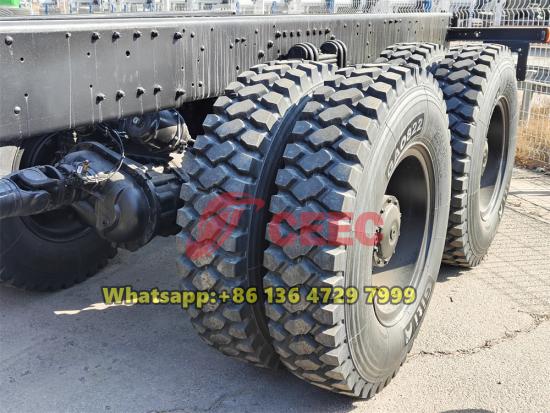

Tire |
12.00R24 |
|
|
Cab |

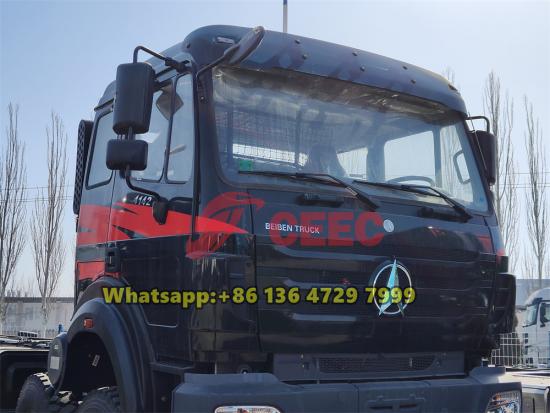

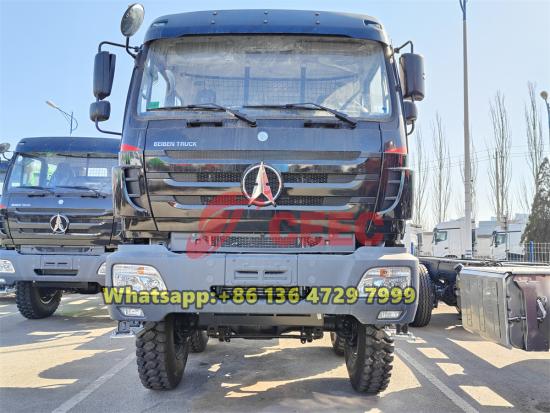

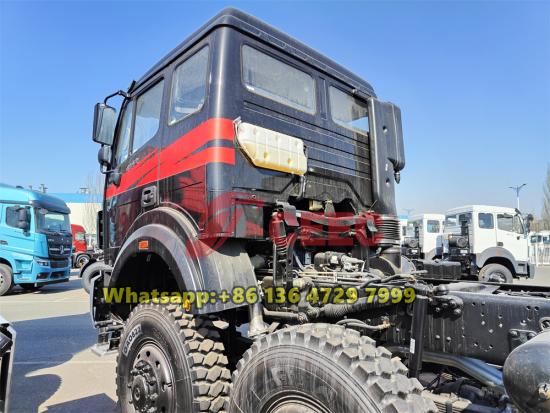

NG80B Long Cabin/ Flat roof/Left drive Exterior trimming: Metal bumper, three steps, outer sun visor, sun roof (Manual), front under-ride bumper, rear view mirror (Manual). |
|
|
Interior trimming: Air suspension seat, Single bunk with sleeper, cooling and heating air conditioner, Steering wheel can be adjusted, door lock(Manual), radio (with MP3), digital instrument |
||
Robust 8x8 Drive Type: The BEIBEN 8x8 offroad cargo truck boasts an impressive 8x8 drive type, providing exceptional traction and stability across varied terrains. This feature ensures reliable performance even in challenging environments, making it suitable for diverse construction and industrial applications.
Powerful Engine: Equipped with the WP12.420 diesel engine model, delivering a formidable 420HP engine power, this Beiben 8x8 model truck combines high performance with efficiency. The potent engine ensures ample power for lifting operations while maintaining fuel efficiency, and optimizing productivity on the job site.
north benz brand china beiben 8 wheel drive truck are ideal transport with outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces.
Originate from Mercedes-Benz Germany and Chinese local manufacturers,Beiben truck is the Chinese best truck brands and best quality, technical performance properties index and conform to the state and military standard.
Beiben 8x8 all wheel driving cargo truck, the Beiben 4142 model truck equipped with NG80 classical cabin, mounted with 12.00R24 tires, which have a larger diameter and higher height, and the Beiben 8x8 chassis has a strong passing ability when facing uneven road surfaces with ditches, potholes and rocks. Super powerful WEICHAI WP12.420E32 diesel engine with 420HP and emission 11596cc, turbo charge and 6 cylinder. Stronger frame can be suitable to build all kinds of special purpose trucks.
The Beiben 8×8 all-wheel-drive chassis features a tri-axle twelve-wheel design with a wheelbase of 1500+5050+1450mm. The overall dimensions are 12100X2700X3400mm, and the curb weight is 10800kg. It is equipped with a WP12.420E32 diesel engine, rated at 319Kw (420HP), mated to a 12JS200T transmission. The chassis is fitted with a dual-circuit air brake system and a full-circulating ball-type steering system, and utilizes a fish-belly high-strength frame. With its ability to adapt to various complex environments, it is a preferred choice in the field of off-road transportation, widely used in petroleum exploration, mining, military operations, and rescue missions.
The Beiben 8x8 offroad drive truck is a rugged and powerful off-road vehicle designed to tackle the toughest terrains with ease. Equipped with a set of 12.00R24 tyres, this truck offers superior traction and stability, allowing it to confidently navigate through mud, snow, rocks, and other challenging conditions. Brand new Beiben 3135 V3 cargo truck chassis equipped with newly designed V3 cabin with one sleeper, A/C system for convenient working, WEICHAI diesel engine with 350HP, emission can be 9.726cc, FAST brand 12JS200T model with 12 forward and 2 reverse, as for axle capacity for the China North Benz 8x8 military truck chassis, front can be 7500kg with double turning axles and rear can be 13000kg with double driving axles, diesel tanker capacity is 400L, optional aluminum alloy material or carbon steel material, ZF8098m left hand drive or right hand drive steering suitable for all Africa market, the V3 new cabin can have painting and logos 100% as customized.
Beiben 8x8 V3 Truck Chassis is equipped with WEICHAI WP10H350 engine with 350 horsepower and 9.5 liter displacement. It adopts 12JS200T gearbox with 12 forward gears and 2 reverse gears. ZF8098 hydraulic power steering system improves handling. The front axle adopts Mercedes Benz technology and has a load capacity of 6.5 tons. The rear axle has a double reduction and a load capacity of 13 tons. The vehicle size is 9500×2500×3180 mm, the wheelbase is 1500+4150+1450 mm, the total mass is 31,000 kg, the maximum speed is 100 kilometers per hour, and the fuel tank capacity is 400 liters. It is suitable for a variety of heavy-duty transportation tasks.
