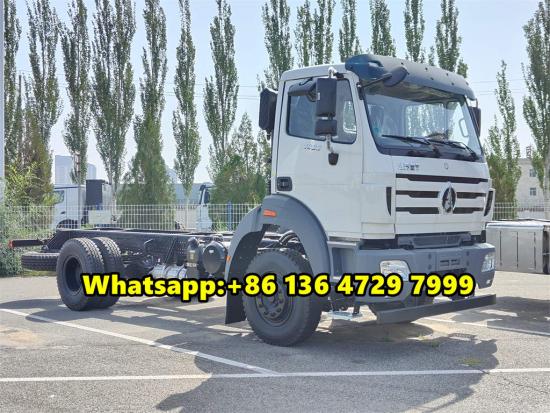

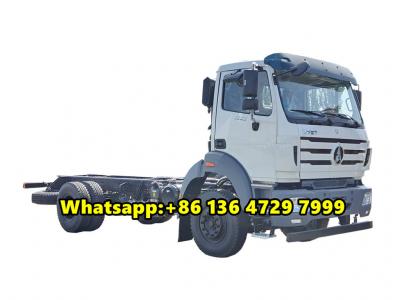

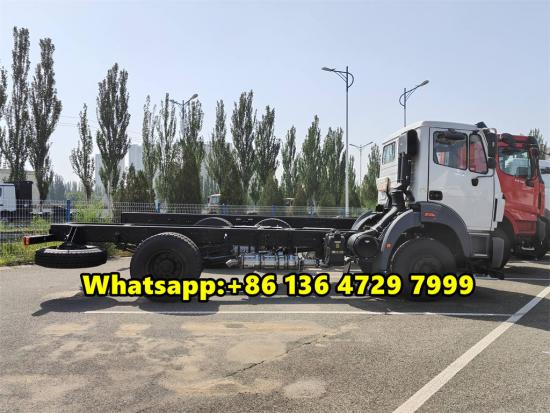

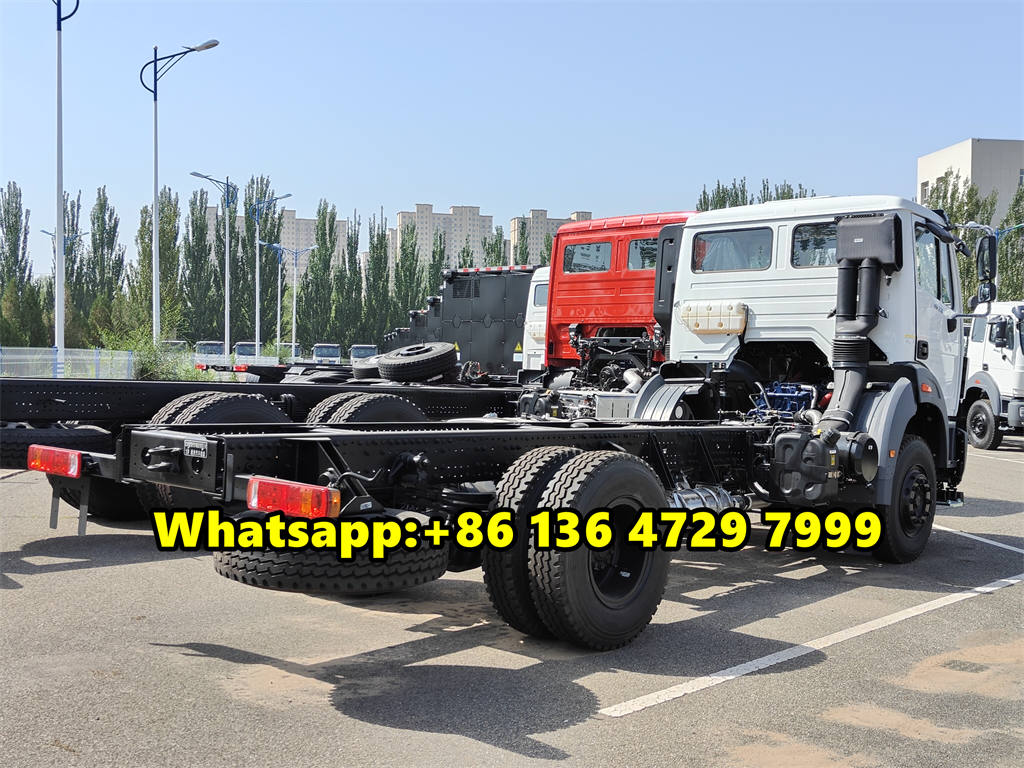

Beiben 4×2 chassis is a high-performance chassis designed for heavy-duty transportation, with excellent driving ability. Its wheelbase is 4500mm, the overall dimensions are 7990×2495×2965mm, and the gross vehicle weight reaches 18000kg. The chassis is equipped with a WP10.240 engine with a rated power of 175Kw (240HP) and an emission standard of EURO 3. The transmission system adopts a 9JS150A mechanical gearbox, equipped with a dual-circuit air brake system and hydraulic power steering. Its fuel tank capacity is 400L, which is suitable for long-distance driving needs.
Production time:
35 daysPayment terms:
TTWorking Capcity:
10 tonsEngine power:
240 HPDrive system:
4×2Product Description

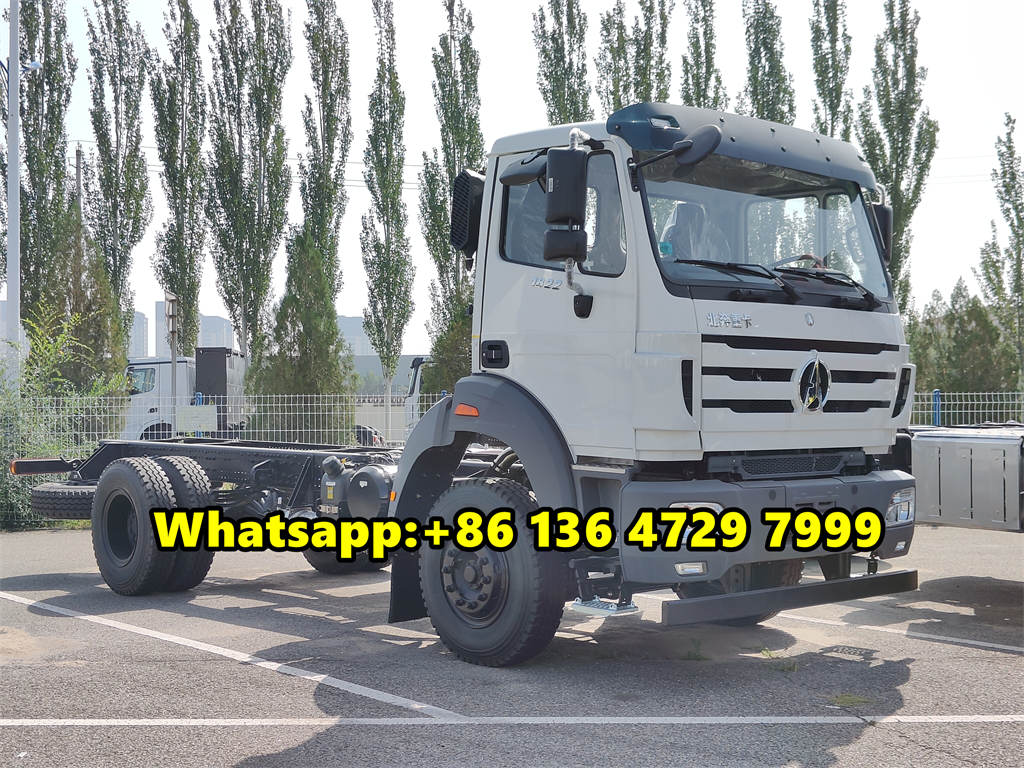

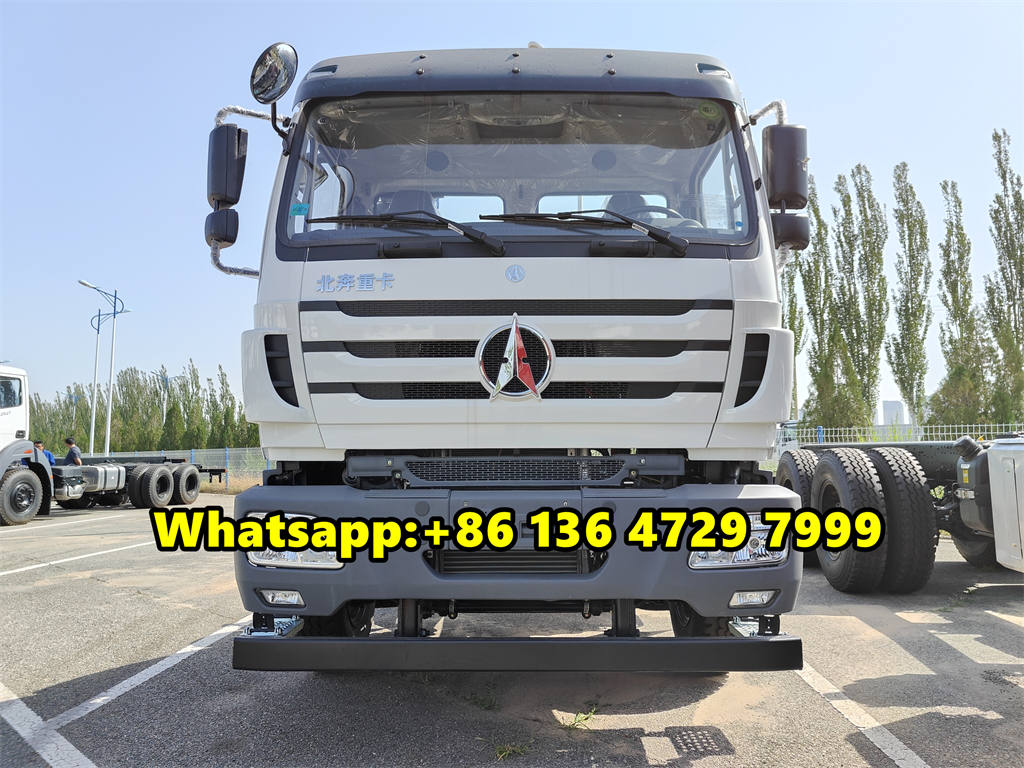

Beiben 4×2 truck chassis, as a high-performance chassis designed for heavy-duty transportation and operations, can demonstrate excellent driving and operating capabilities in various complex environments with its outstanding design and powerful functions. The chassis has a wheelbase of 4500mm and an overall size of 7990×2495×2965mm, providing it with a stable driving foundation. Beiben 4×2 chassis adopts NG80B short cab (no sleeper) and left-hand steering wheel design. The cab has an all-steel skeleton structure, covered with double-layer steel plates, and can be flipped forward. The interior decoration is luxurious and comfortable, equipped with integrated interior, digital instrument, radio (with USB interface + MP3), high back/shock-absorbing driver's seat, high back co-pilot seat, etc. The steering wheel can be adjusted and equipped with an in-car air conditioning system.
Beiben 6 wheeler chassis is equipped with WP10.240 engine, which is a water-cooled, four-stroke, inline six-cylinder, turbocharged diesel engine. Its rated power is 175Kw (240HP), output at 2200rpm, with strong power performance. At the same time, the engine has a minimum fuel consumption rate of 196g/kw.h, showing high fuel economy. In addition, the engine has a maximum torque of 1000Nm, output in the speed range of 1200-1600rpm, providing a strong load capacity for the vehicle. The Beiben 4×2 truck chassis uses the FAST 9JS150A mechanical gearbox with 9 forward gears, smooth and reliable shifting. The clutch uses the #430 single dry friction plate and hydraulic power-assisted clutch, which is easy to operate and completely separated.
In terms of axle configuration, the front axle of the Beiben 4×2 chassis uses double-shoe pneumatic brakes and a 7.5-ton non-driven steering axle (Mercedes-Benz technology), while the middle and rear axles use double-shoe pneumatic brakes, ductile iron housings, pulley-side reducers, and 13-ton double-stage reduction drive axles (Mercedes-Benz technology), with a speed ratio of 5.263. This configuration gives the vehicle better stability and load-bearing capacity during driving.
Product Specifications
|
Wheel base(mm) |
4500 |
|
|
L*W*H (mm) |
7990×2495×2965 |
|
|
Gross vehicle weight (kg) |
18000 |
|
|
Curb weight(kg) |
6300 |
|
|
Front overhang/rear overhang (mm) |
1435/2100 |
|
|
Approach angle/Departure angle |
15/13 |
|
|
Max Speed:(Km/h) |
≤90 |
|
|
Model |
WP10.240, water-cooled, four strokes,6 cylinders straight in line, turbocharged, |
|
|
Engine |
Fuel type |
Diesel |
|
Min rate of consuming fuel(g/(kw.h)) |
196g/kw.h |
|
|
Rated Power / rotating(kw/(r/min) |
175Kw(240HP)/2200rpm |
|
|
Emission |
EURO 3 |
|
|
Maximum Torque / rotating speed(n.m/(r/min) |
1000Nm/1200-1600rpm |
|
|
Displacement(ml) |
9726 |
|
|
Fuel tanker capacity(L) |
400L |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc,Hydraulic boosting |
|
Gearbox |
Model |
9JS150A mechanical type, mechanical type, 9 forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
ZF 8098, recirculating ball steering gear, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,10 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension |
|
|

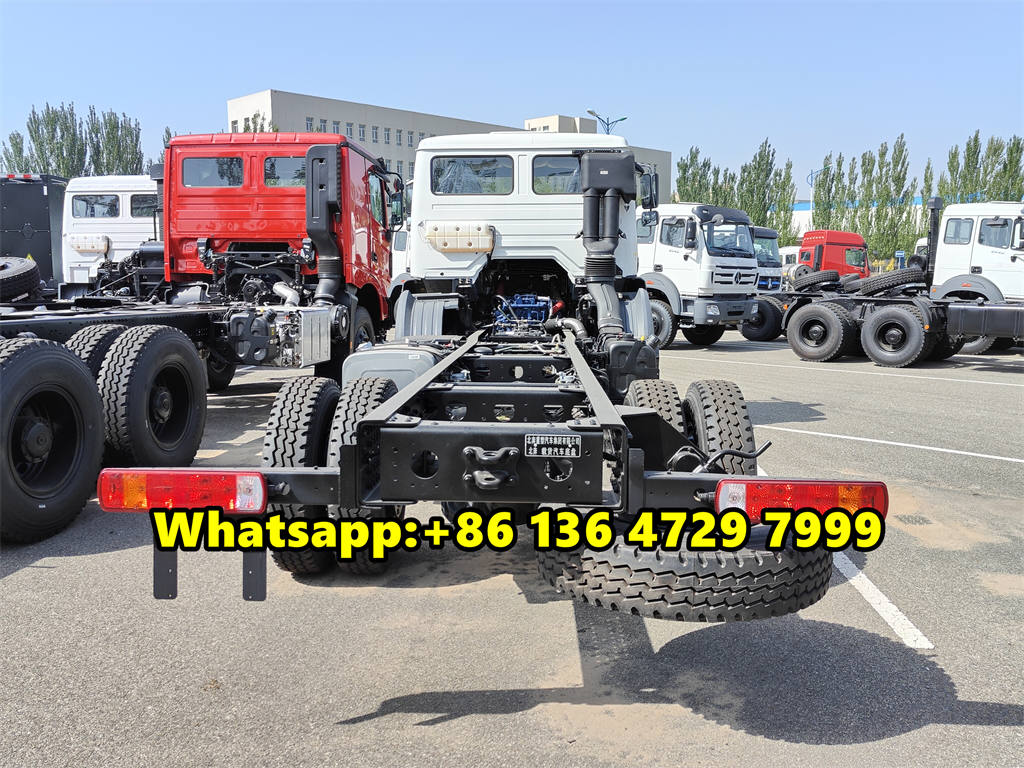

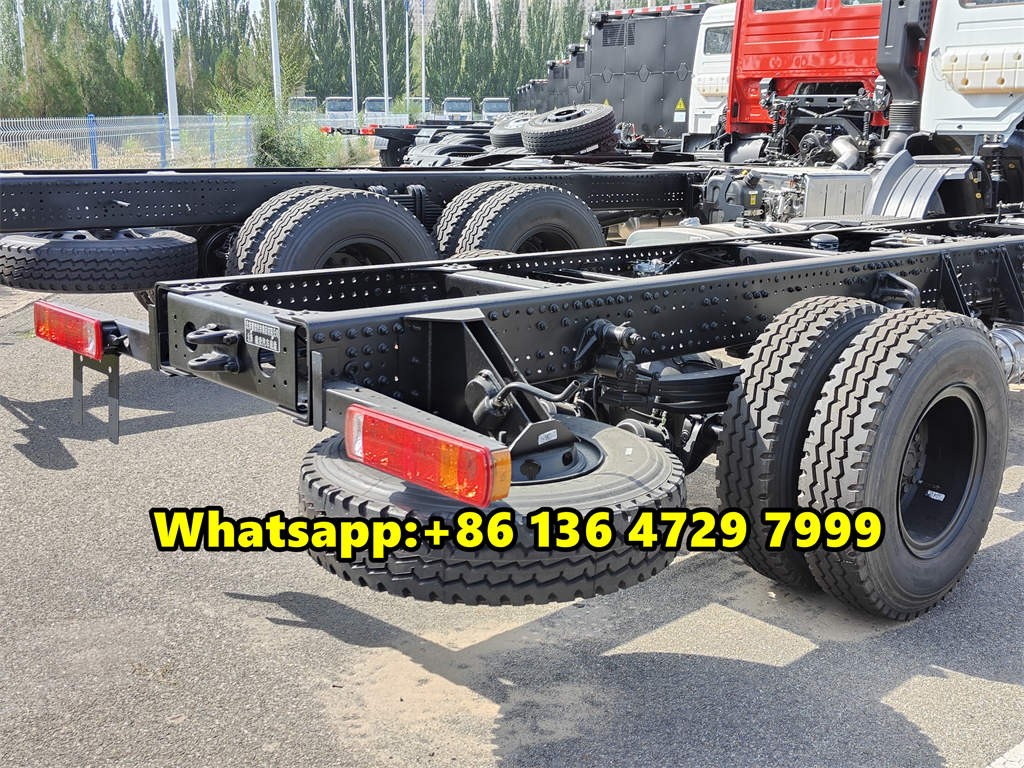

Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7mm |
|
|
Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7.5 ton non-driving steering axle |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13tons double reduction driving axle, speed ratio 5.263 |
|
|
Tire |
10.00R20 |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B left hand drive |
|
|
Interior trimming: |
||
|
Exterior trimming: |
||
|
Other specifications |
Two-stage air filter, 76° Tropical thermostat. |
|
Product Details
Beiben 4*4 drive trucks are used for military department, our beiben 4 wheel drive trucks enjoy great reputation in foreign market.
Best beiben 4 wheel drive truck supplier in china, Beiben 4*4 drive trucks are used for military department, our beiben 4 wheel drive trucks enjoy great reputation in foreign market.
Beiben 4*4 drive cargo truck with crane , china weichai diesel 300HP engine, fast 9 shift transmissin. benz truck technology,
Best Beiben ND12502B41J all wheel drive truck 300 hp for kenya country, tanzania country, Nigeria country, Congo country. We are the best supplier for beiben 4*4 truck chassis.
Beiben ND1290 military truck for exporting , tanzania country, Nigeria country, Congo country. We are the best supplier for beiben 4*4 truck chassis.
China 4 wheel drive military truck supplier for beiben truck, military axle from germany benz technology, beiben 1929A , weichai 290 hp engine, 11.00-20 tyre.
North benz V3 cabin 4 drive military truck supplier for beiben truck, Germany technology military axle from germany benz technology, beiben 1929A , weichai 290 hp engine, 11.00-20 tyre.
UN 4*4 wheel drive military truck, special benz technology quality ensurance for UN force using, very reliable for UN military from china baotou beiben heavy duty truck co.,limited
Beiben 4x4 truck chassis is world widely know as Beiben 1822 cargo truck, Beiben 1929 cargo truck. Drive mode 4x4 means four-wheel full drive, which is suitable for use environments that require strong off-road performance and stability. The Beiben 4x4 offroad type of chassis is usually equipped with a high-performance engine WEICHAI diesel type and transmission system FAST brand, as well as good load-bearing capacity with Mercedes Benz technology 7.5tons front axle and 13tons rear axle, and durability to meet the transportation needs of long-distance, heavy-loaded and harsh road conditions. Beiben cargo trucks can customize the chassis according to customer needs, including wheelbase, number of tires, engine model, etc., to meet the specific needs of different customers. Specially Beiben NG80B cabin can be customized as any color as required.
