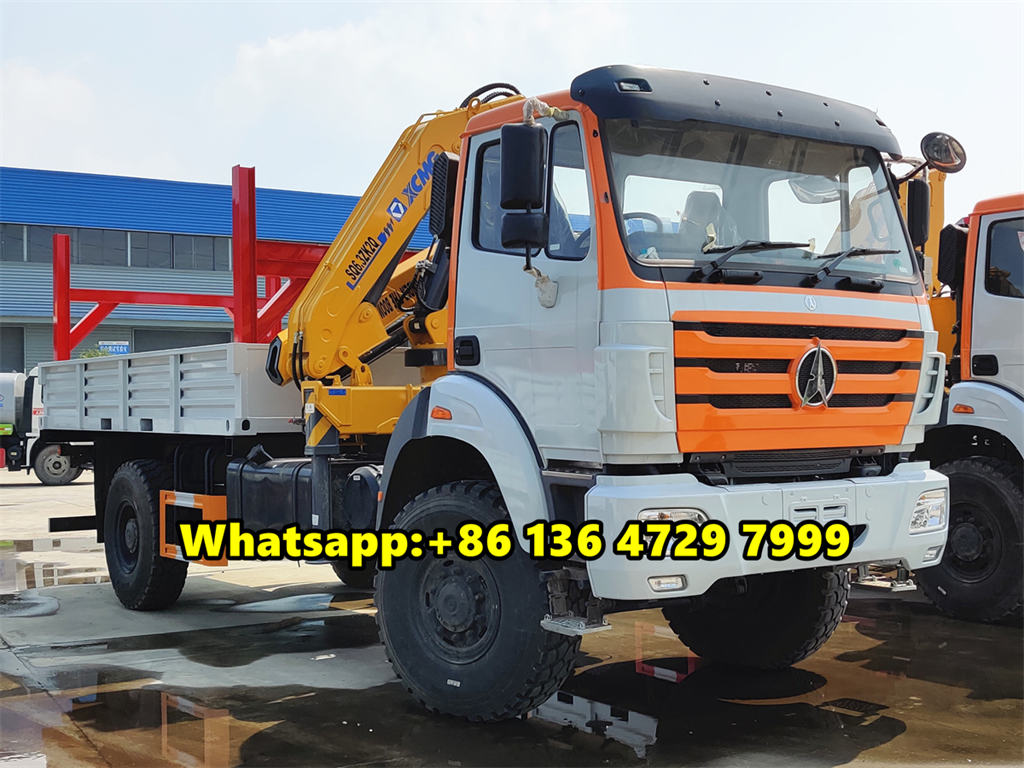

Beiben 4×4 all-wheel drive truck mounted crane is equipped with XCMG brand knuckle boom crane, with a maximum lifting weight of 6.3 tons, a maximum lifting height of 12.5 meters, and a working radius of 9.9 meters. It is equipped with WEICHAI WP10.290 engine with a power of up to 290HP and a FAST 9-speed gearbox, providing powerful power.
Production time:
40 daysPayment terms:
T/TWorking Capcity:
6.3 tonsEngine power:
290 HPDrive system:
4×4Product Description

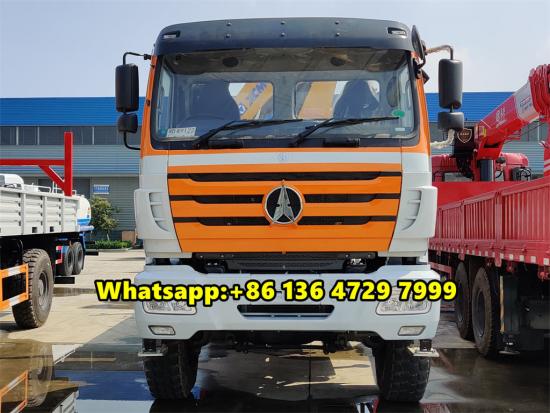

Beiben 4×4 crane truck is based on BEIBEN brand chassis, which provides a solid foundation for the whole vehicle. Its vehicle weight reaches 11590 kg and the wheelbase is 4300 mm, which ensures stability and safety during driving. The vehicle size is 7265×2500×3750 mm, which allows it to shuttle flexibly in various environments. At the same time, the front and rear overhangs are 1500 mm and 2250 mm respectively, with a 14° approach angle and a 12° departure angle, so that the vehicle can still be at ease in complex terrain.
Beiben 4×4 off-road truck mounted crane is equipped with WEICHAI brand WP10.290 model engine, with a displacement of 9726 ml and a maximum power of 290 HP, which is about 213KW. Such a power configuration ensures the efficient operation of the vehicle under various working conditions. The Beiben crane truck is equipped with a manual FAST transmission with 9 forward gears and 1 reverse gear, providing drivers with a wealth of driving options. At the same time, the vehicle is equipped with a reinforced diaphragm clutch and air brake system to ensure the accuracy and safety of the control. In addition, the vehicle also uses a hydraulic power steering system, making driving easier and more labor-saving.

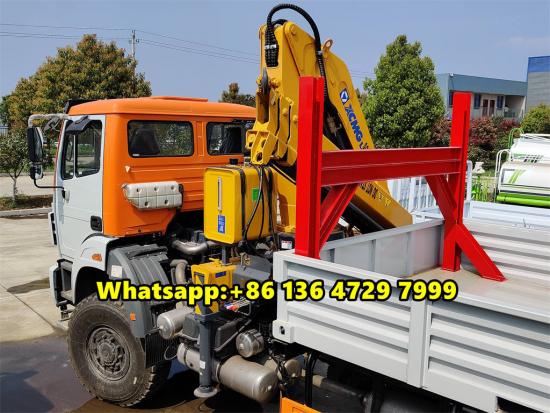

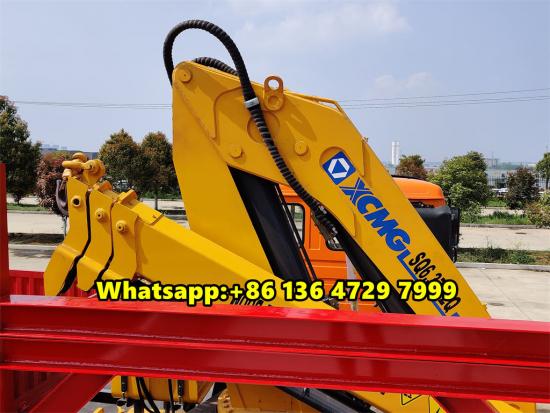

The crane of the Beiben 4×4 all-wheel drive truck with crane is an XCMG 4-section knuckle boom crane, with a maximum lifting weight of 6.3 tons, a maximum lifting height of 12.5 meters, and a working radius of 9.9 meters, making the lifting operation more flexible and changeable. In addition, the boom of the Beiben truck with crane is made of carbon steel material, which has the advantages of high strength and wear resistance, ensuring the safety and reliability of the lifting operation.
Product Specifications
|
Product name |
Beiben 4×4 truck mounted crane |
||
|
Chassis |
Brand |
BEIBEN |
|
|
Curb weight(kg) |
11590 kg |
||
|
Wheelbase(mm) |
4300 mm |
||
|
Dimensions(mm) |
7265×2500×3750 mm |
||
|
Overhang (front/rear) (mm) |
1500/2250 mm |
||
|
Approach/Departure angle(°) |
14/12 |
||
|
Axle Load(kg) |
9000/16000kg |
||
|
Max. driving speed(km/h) |
80 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Brakes |
Air brake |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Number |
6pcs with one spare tire |
|
|
Specifications |
10.00R20 |
||
|
Transmission |
FAST, manual, 9 Forwards and 1 Reverses |
||
|
Cabin |
It can accommodate two people, with Air conditioner |
||
|
Engine |
Brand |
WEICHAI |
|
|
Model |
WP10.290 |
||
|
Displacement(ml) |
9726 ml |
||
|
Power(kw)/Horsepower/(HP) |
290 HP |
||
|
Emission standard |
Euro 3 |
||
|
Crane |
Boom Type |
Knuckle type, Folding arm |
|
|
Material |
Carbon Steel |
||
|
Brand |
XCMG |
||
|
Max. Lifting Weight |
6.3 tons |
||
|
Max. Lifting Height |
12.5 m |
||
|
Working radius |
9.9 m |
||
|
Extendable boom section |
4 |
||
Product Details
Beiben 4*4 drive trucks are used for military department, our beiben 4 wheel drive trucks enjoy great reputation in foreign market.
Best beiben 4 wheel drive truck supplier in china, Beiben 4*4 drive trucks are used for military department, our beiben 4 wheel drive trucks enjoy great reputation in foreign market.
Beiben 4*4 drive cargo truck with crane , china weichai diesel 300HP engine, fast 9 shift transmissin. benz truck technology,
Best Beiben ND12502B41J all wheel drive truck 300 hp for kenya country, tanzania country, Nigeria country, Congo country. We are the best supplier for beiben 4*4 truck chassis.
Beiben ND1290 military truck for exporting , tanzania country, Nigeria country, Congo country. We are the best supplier for beiben 4*4 truck chassis.
China 4 wheel drive military truck supplier for beiben truck, military axle from germany benz technology, beiben 1929A , weichai 290 hp engine, 11.00-20 tyre.
North benz V3 cabin 4 drive military truck supplier for beiben truck, Germany technology military axle from germany benz technology, beiben 1929A , weichai 290 hp engine, 11.00-20 tyre.
UN 4*4 wheel drive military truck, special benz technology quality ensurance for UN force using, very reliable for UN military from china baotou beiben heavy duty truck co.,limited
Beiben 4x4 truck chassis is world widely know as Beiben 1822 cargo truck, Beiben 1929 cargo truck. Drive mode 4x4 means four-wheel full drive, which is suitable for use environments that require strong off-road performance and stability. The Beiben 4x4 offroad type of chassis is usually equipped with a high-performance engine WEICHAI diesel type and transmission system FAST brand, as well as good load-bearing capacity with Mercedes Benz technology 7.5tons front axle and 13tons rear axle, and durability to meet the transportation needs of long-distance, heavy-loaded and harsh road conditions. Beiben cargo trucks can customize the chassis according to customer needs, including wheelbase, number of tires, engine model, etc., to meet the specific needs of different customers. Specially Beiben NG80B cabin can be customized as any color as required.
